60 Inch Linear Direct Vent Natural Gas Fireplace - Modern & Energy Efficient DRL4060 for Living Room, Bedroom & Office Heating
Free shipping on all orders over $50
7-15 days international
9 people viewing this product right now!
30-day free returns
Secure checkout
19008363
Description
The Superior 60" Custom series Direct Linear Vent Fireplace, offers a sleek modern appearance that is right at home in contemporary and transitional spaces. A Superior fireplace puts you in the league with the best fire appliance manufacturers out there. You get a beautiful design, a robust, durable body, and a 20-year warranty to guarantee your satisfaction. With this Superior 60 Inch Direct Vent Linear Gas Fireplace, you get six flame settings along with an electronic ignition that keeps working if the power goes out on you.
Features
- Available in 48″, 60”, 72″ and 84″ linear configured models

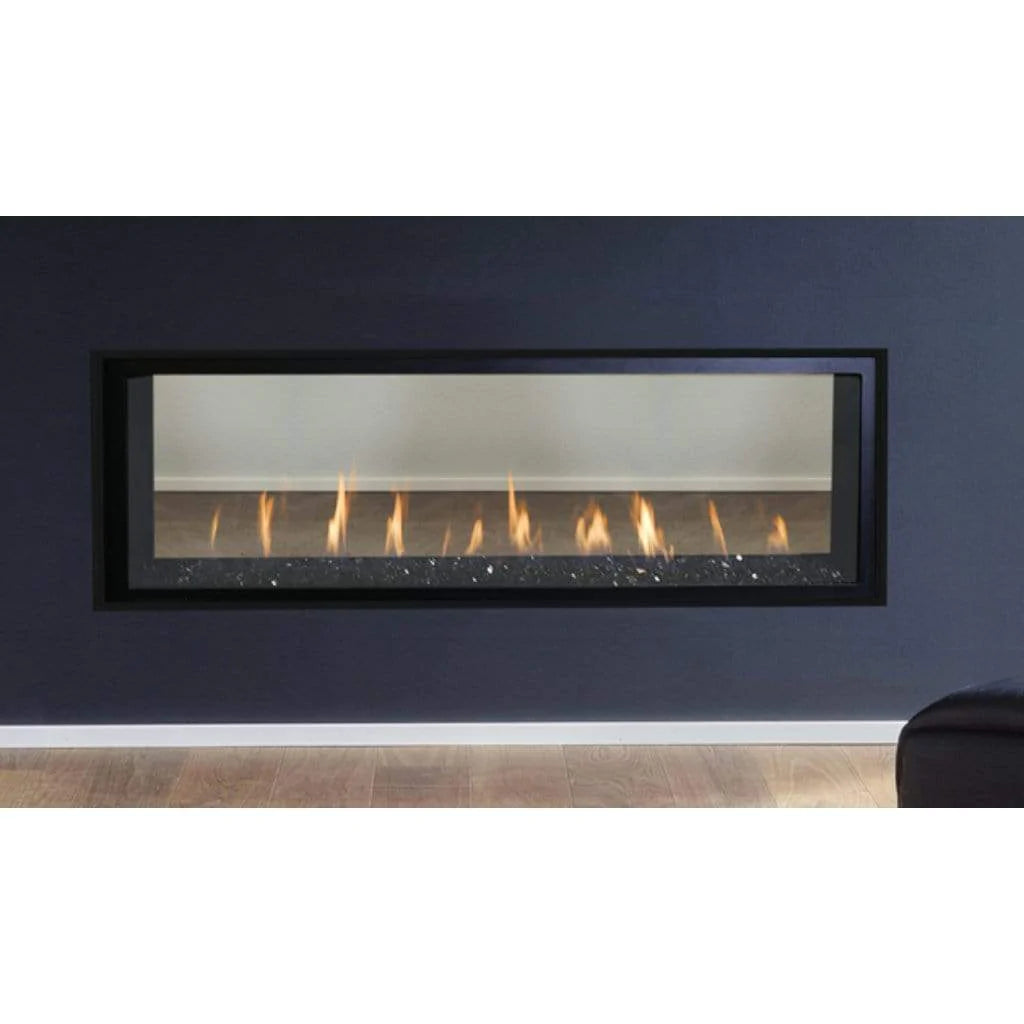

- Indoor see-through conversion kit available to allow viewing from two living spaces
- HeatFlo™ kit option allows heat to be directed above heat sensitive wall hangings
- Electronic ignition with battery backup provides continued operation in the event of a power outage
- Clean-face design with integrated tile stops for easy finishing
- Ceramic glass for optimum heat transfer and a protective screen*
- Black painted interior standard with a reflective glass liner available
- Reflective black crushed glass media included with several optional colors available to customize the look
- Optional blower and hand held multi-function remote control available**
- 20 year warranty
Includes
- Fireplace unit
- Literature Kit (Installation and Operation Instructions, Hot Glass Safety Flyer, and Safety-In-Operation Warning Labels.
- Three (3), 5 lb. bags of Reflective Black Glass Media
- 15 feet of two conductor wire
- Four (4), AA Batteries
- One (1), Fireboard Top
- One (1), Fireboard Bottom
- Two (2), Fireboard Sides
- Self Drill Bugle Drywall Screws (to attach Fireboard)
- One (1) Standoff Assembly
- One (1) Heat Shield
- Twelve (12) #10 Hex Head Screws
*All applicable models comply with ANSI Z21.88 barrier requirements.
**Blower use is not compatible with a see-through application.
| Model | DRL4060 |
| Fuel Type | Natural Gas Liquid Propane using Conversion Kit |
| Product Type | Direct Vent Gas Fireplace |
| Framing Width | 74-1/4" |
| Framing Height | 48-1/2" |
| Framing Depth | 19-1/2" 18-1/2" (See Through) |
| BTU | 40,000-28,000 (NG) 40,000-30,000 (LP-field converted) |
| Design Style | Contemporary |
| View Style | Front-View |
| Controls | Remote Control |
| AFUE* | 55.1% (NG) 54.0% (LP-field converted) |
| P4** | 52.6% (NG) 52.6% (LP-field converted) |
*AFUE is a measurement of the US Department of Energy
** P4 (EnerGuide) is a measurement of the Canadian Office of Energy Efficiency.
Product Dimensions
| Model | A | B | C | D | E |
| DRL4060 | 74" | 37" | 56-5/8" | 61-1/2" | 76-5/8" |
Framing Dimensions
| Model | A | B | C |
| DRL4060 | 74-1/4" | 19-1/2" | 48-1/2" |
| *E | *F | G | H |
| 84" | 3" | 62" | 7-1/2" |
*E. Minimum height from appliance base to ceiling
*F. Minimum Opening Distance from Ceiling to Allow for Min Distance from HeatFlo Register to Ceiling of 6"
