48 Inch Linear Contemporary Direct Vent Natural Gas Fireplace - Modern Home Heating Solution for Living Rooms & Bedrooms | DRL6048
Free shipping on all orders over $50
7-15 days international
27 people viewing this product right now!
30-day free returns
Secure checkout
45267010
Description

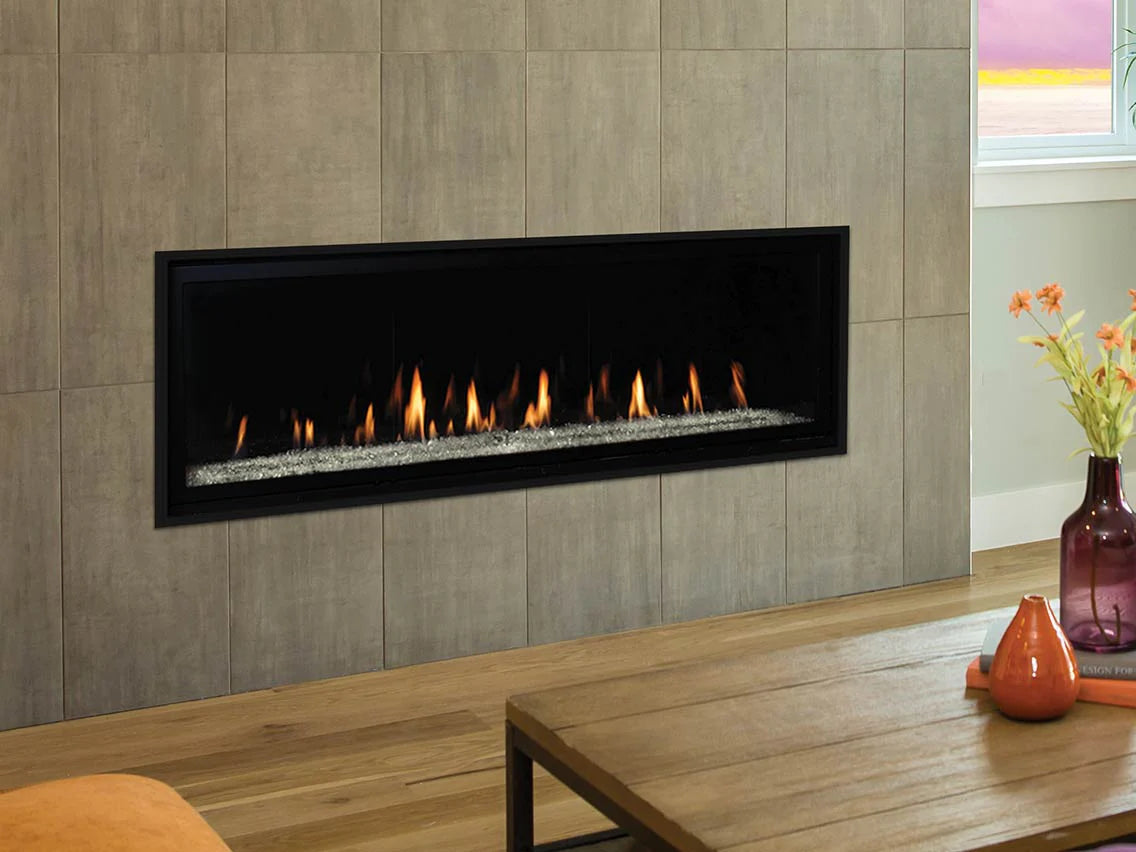

The DRL6000 Series linear gas fireplace adds a modern flourish to any living space, with its grand ceramic glass opening providing a magnificent view of the flames and floor lighting to set the perfect mood. An included heat circulating blower and multi-function remote offer the ultimate in luxury and ease of use.
Features
- Available in 48″, 60”, 72″ and 84″ linear configured models

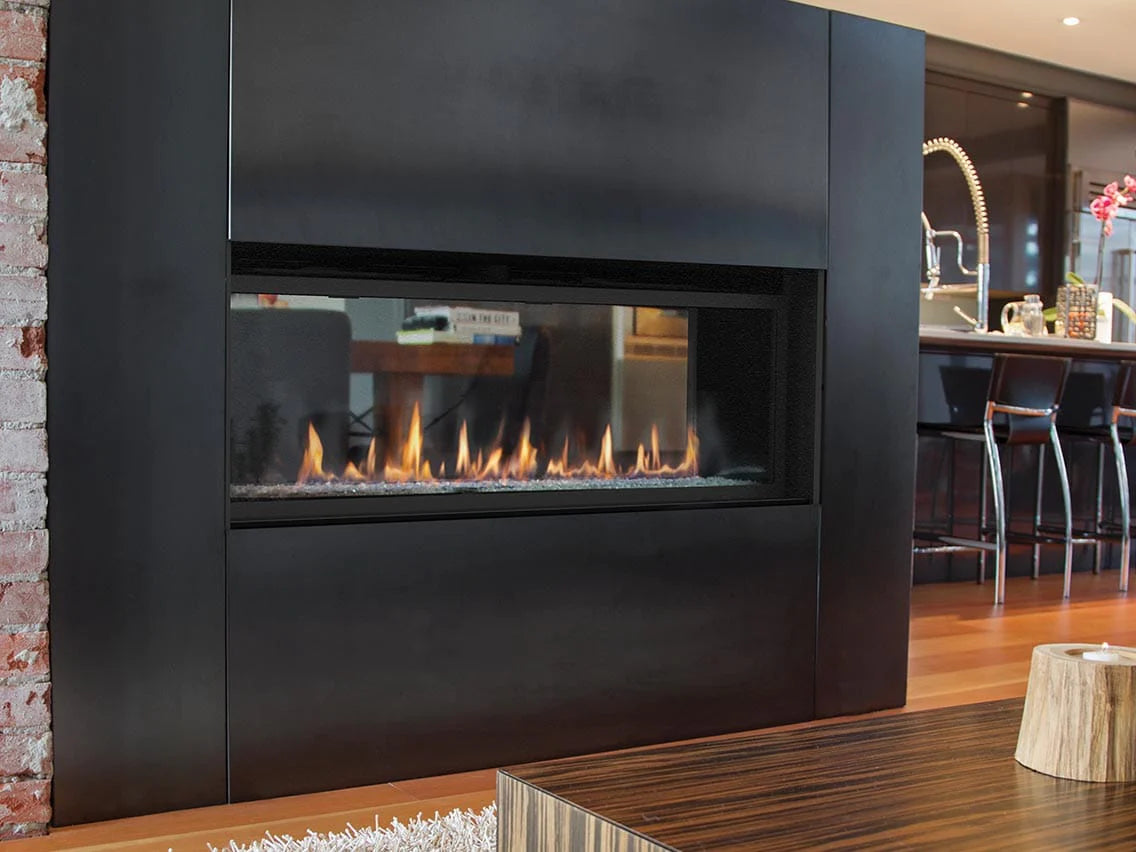

- Indoor see-through conversion kit available to allow viewing from two living spaces
- Indoor/Outdoor see-through conversion kit available to enjoy the fire both inside and out (48” model only)
- HeatFlo™ kit option allows heat to be directed above heat sensitive wall hangings
- Electronic ignition with battery backup provides continued operation in the event of a power outage
- Six flame settings with up to a 30% turn down for precise heat control
- Outstanding heating efficiency for increased comfort and lower operating costs
- Clean-face design with integrated tile stops for easy finishing
- Ceramic glass for optimum heat transfer and a protective screen*
- Factory-installed blower with six-speed settings to fine-tune your heating needs**
- Black porcelain liner interior for a reflective view of the fire
- Platinum crushed glass media is included with several optional colors available to customize the look
- Mood-enhancing floor lighting enhances the fireplace interior with or without a fire
- Multi-function remote included (IPI/CPI, thermostat, flame height, blower, lighting)
- Optional Power-Vent system available for down-and-out installations
- 20 year warranty
What's Included
- Fireplace unit
- Literature Kit (Installation and Operation Instructions, Hot Glass Safety Flyer, and Safety-In-Operation Warning Labels.
- Two (2), 5 lb. bags, Platinum Reflective Glass Media
- One (1), Hand Held Remote Control
- Three (3), AAA Batteries
- One (1), Fireboard Top
- One (1), Fireboard Bottom
- Two (2), Fireboard Sides
- 28 Self Drill Bugle Drywall Screws (to attach Fire board)
- One (1) Heat Shield
- One (1) Pipe Shield
- Twelve (12) #10 Hex Head Screws
Not Included
- See-Through Conversion Kit
- HeatFlo Kit & Extension
- Driftwood Log Set
- Surround
- Liner Kit
- Blower Kit
- Propane Conversion Kit
*All applicable models comply with ANSI Z21.50/88 barrier requirements.
**Blower use is not compatible with a see-through application.
| Model | DRL6048 |
| Fuel Type | Natural Gas Liquid Propane using Conversion Kit |
| Product Type | Direct Vent Gas Fireplace |
| Framing Width | 55-5/8" |
| Framing Height | 39-1/8" |
| Framing Depth | 19-1/2" 18-1/2" (See Through) |
| BTU | 35,000-23,500 (NG) 31,000-25,500 (LP-field converted) |
| Design Style | Contemporary |
| View Style | Front-View |
| Controls | Remote Control |
| AFUE* | 63.0 (NG) 63.0 (LP-field converted) |
| P4** | 62.5 (NG) 62.4 (LP-field converted) |
*AFUE is a measurement of the US Department of Energy
** P4 (EnerGuide) is a measurement of the Canadian Office of Energy Efficiency.
Product Dimensions
| Model | A | B | C | D | E |
| DRL6048 | 54-1/4" | 27-1/8" | 46" | 50-3/8" | 57-7/16" |
Framing Dimensions
| Model | A | B | C |
| DRL6048 | 55-5/8" | 19-1/2" | 39-1/8" |
| E* | F* | G | H |
| 84" | 1-1/2" | 53-1/2" | 5-1/8" |
*E. Minimum height from appliance base to ceiling
*F. Minimum Opening Distance from Ceiling to Allow for Min Distance from HeatFlo Register to Ceiling of 6"
