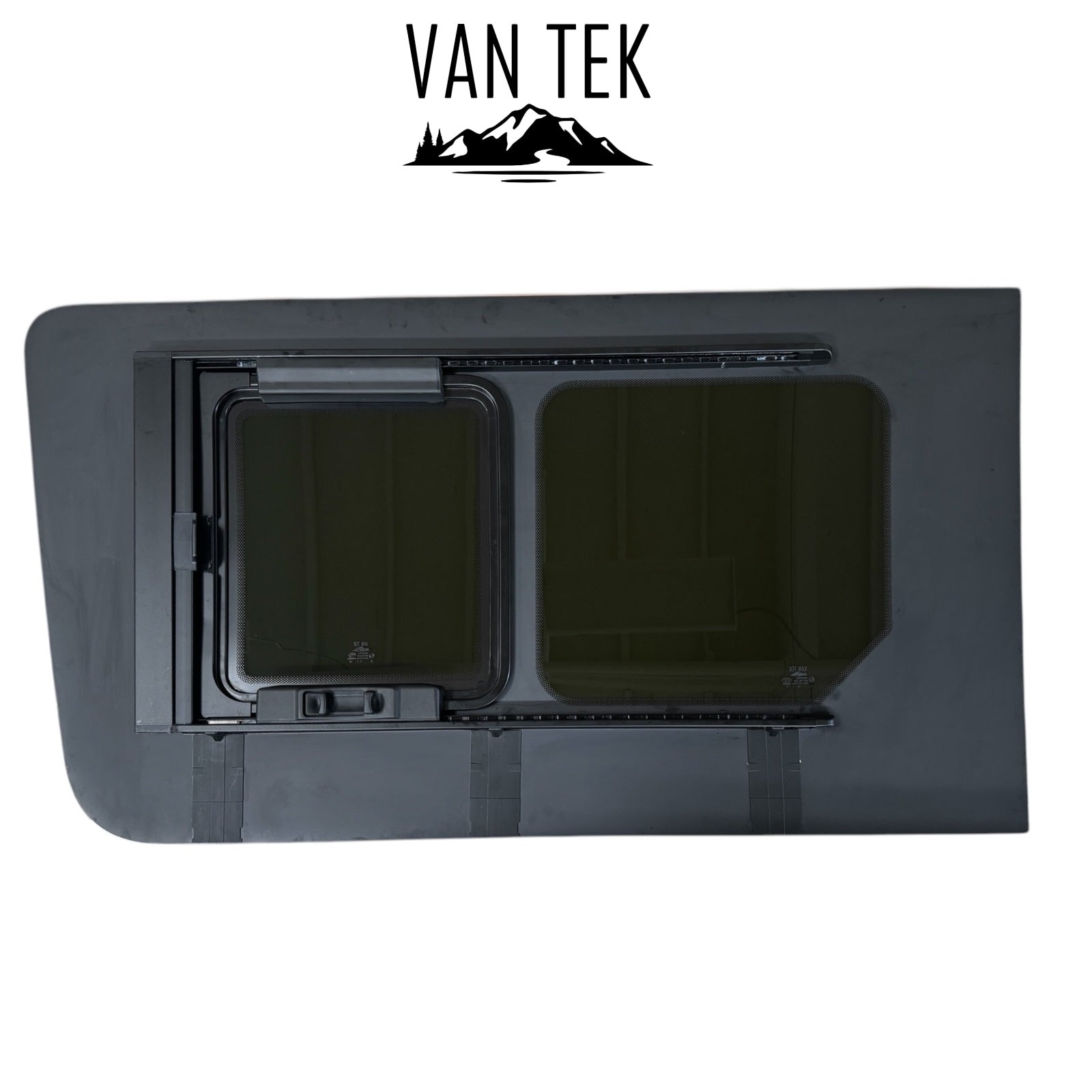

Mercedes Sprinter Passenger Side Flush Sliding Window with Fly Screen - Replacement Van Window for Camping & Road Trips

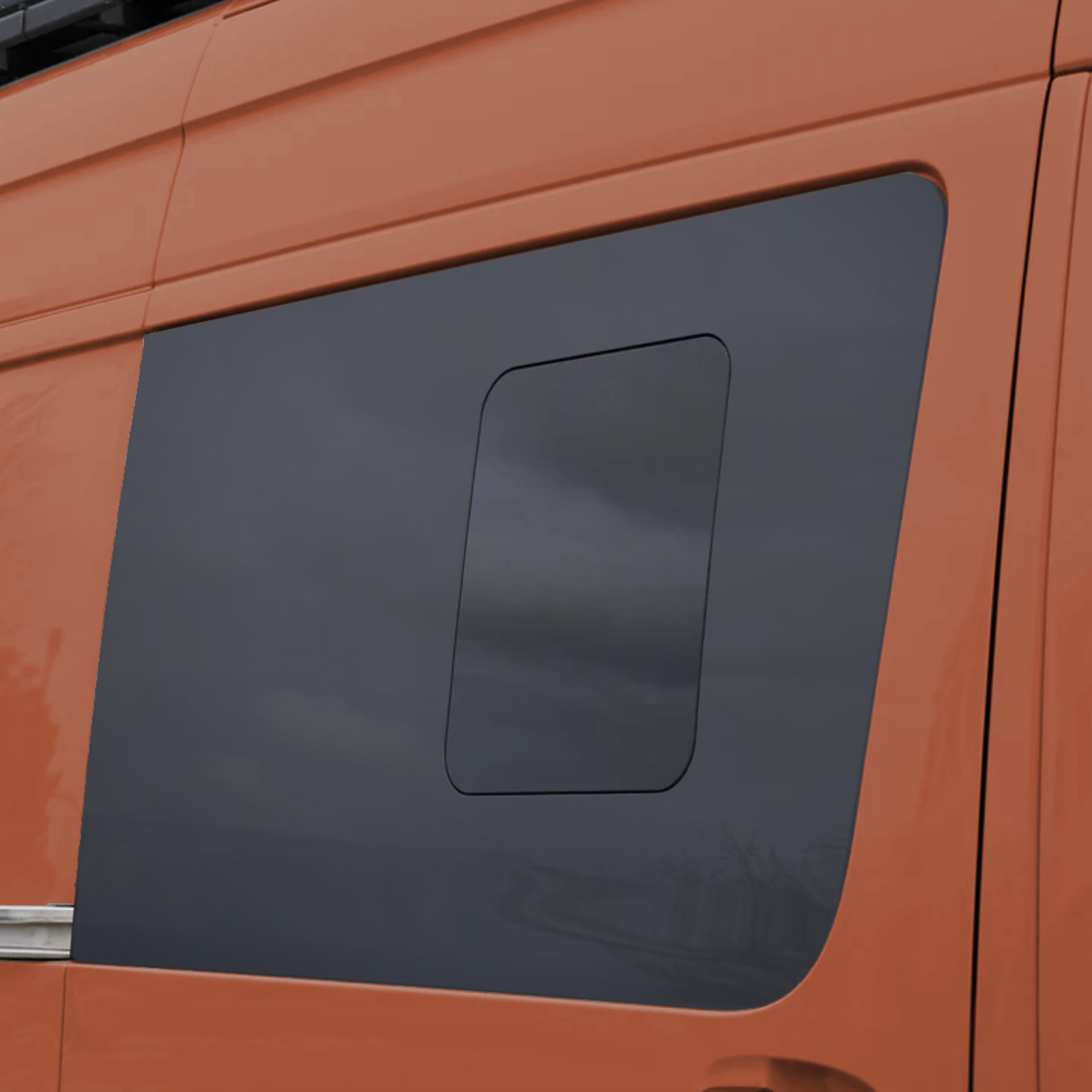

This Mercedes Sprinter Sliding window is designed to look OEM with the sliding portion of the window sitting flush with the outer window. Just like factory fitted sliding opening window but with the added benefit of an Internal Built In FLY SCREEN.

Fitment:

Mercedes Sprinter 2007 – 2025

Mercedes Sprinter MWB 144″

Mercedes Sprinter LWB 170″

Mercedes Sprinter XLWB Extended 170″

Includes:

1 x Mercedes Sprinter Sliding Window With Fly Screen – PASSENGER SIDE

Window Specs:

• Manufacturer: Van Tek Glass
• Part Number: SPRSLDFL002
• Flush OEM Style Window
• Built in internal fly/insect screen
• All our glass meets international safety standards these include: Worldwide Dot Standards, USA Federal Motor Vehicle Safety Standards
• E-marked and AS Rated to strict European standards
• Toughened safety glass
• Sliding opening window sits flush to the outer window
• Can be locked open in multiple positions
• Fly Screen slides independently to the opening window to allow airflow whilst being protected from flying insects entering the vehicle
• Bonded window – No external seal or gasket
• Privacy stained glass (not a tinting film)
• Tinted to 80% allowing 20% of light to pass through
• Av Rating 15%
• External Drainage system
• Black ceramic (silk print) round the internal circumference of the glass so you can’t see the cut metal work
• Tried and tested design
• Measurements:
• Passenger Side Overall Size 1402mm x 769mm (55.19″ x 30.6)
• Slider Opening Size: 543mm x 537mm (21.37″ x 21.1″)

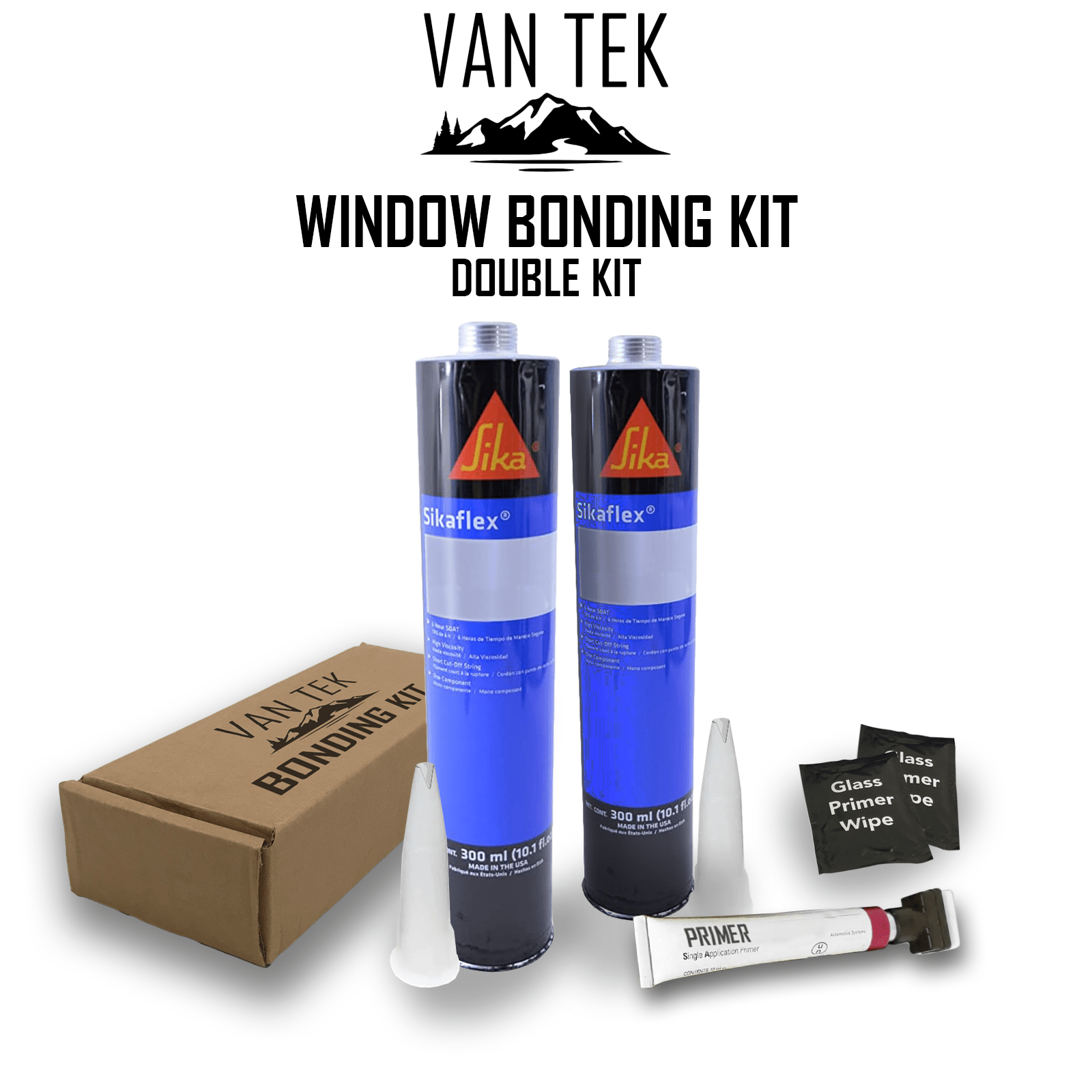

Optional Bonding Kit:

• 2 x Sika Flex P2G Urethane Adhesive Tubes (applied through standard silicone gun)
• 2 x Nozzle tips to apply the adhesive
• 2 x Primer Stick’s with applicator (to be applied to the window and body panel before applying adhesive)
• 2 x Glass Wipe/Panel Wipe (to clean the window and body panel before applying primer)
• 1 x Bonding Kit Instruction Manual
• More fitting kit info here:

The bonding kit can be purchased by adding it to your cart with the window you require via the drop down fit kit and trim options

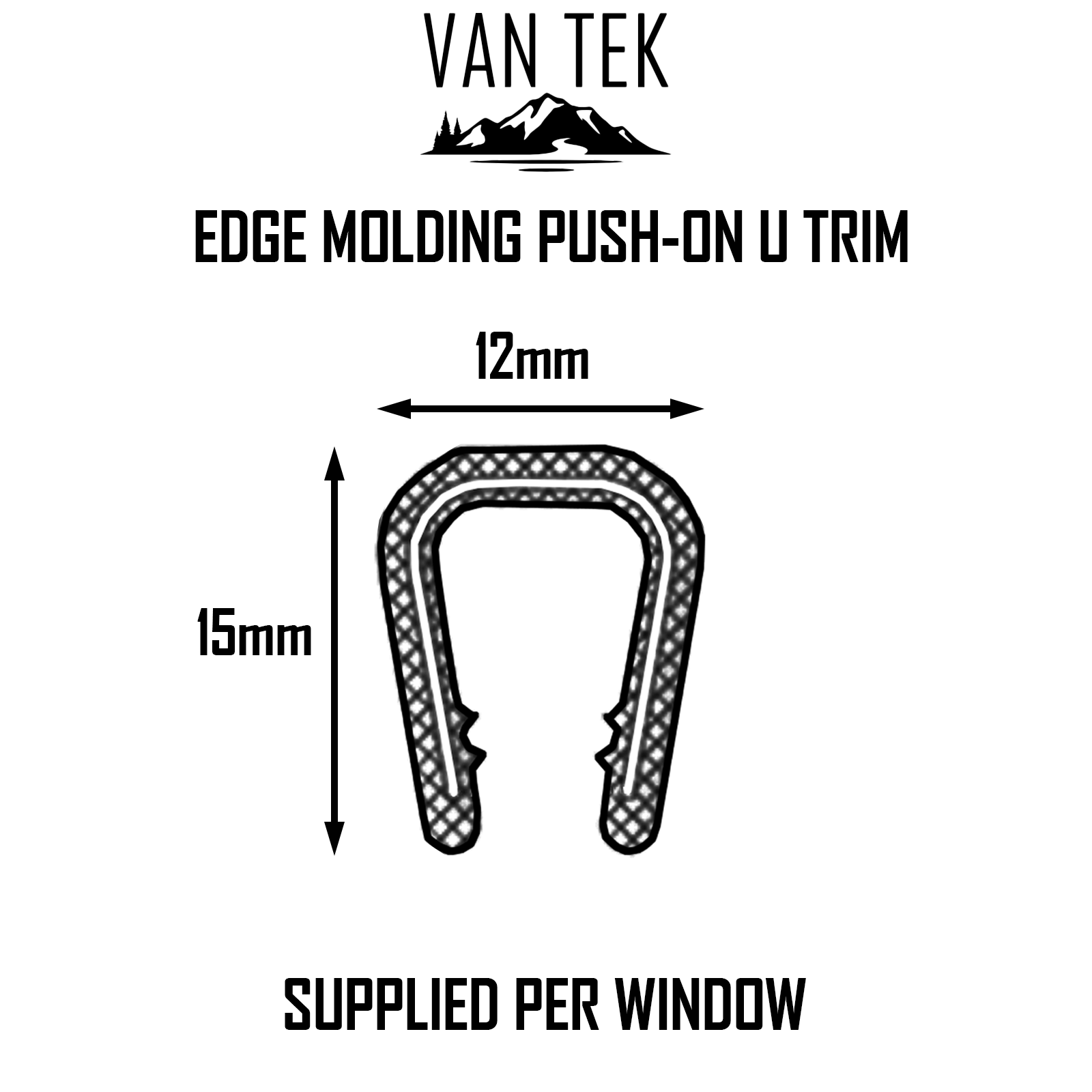

Optional U Trim:

U Trim is used to cover the cut edge. It cover the inner lip and cut edge in one.

• Used to cover the cut edge for a professional finish
• Sold Per window
• 12mm wide
• 15mm tall
• 4 x Meter Long

The trim can be purchased by adding it to your cart with the window you require via the drop down fit kit and trim options.

Fitting Info:
